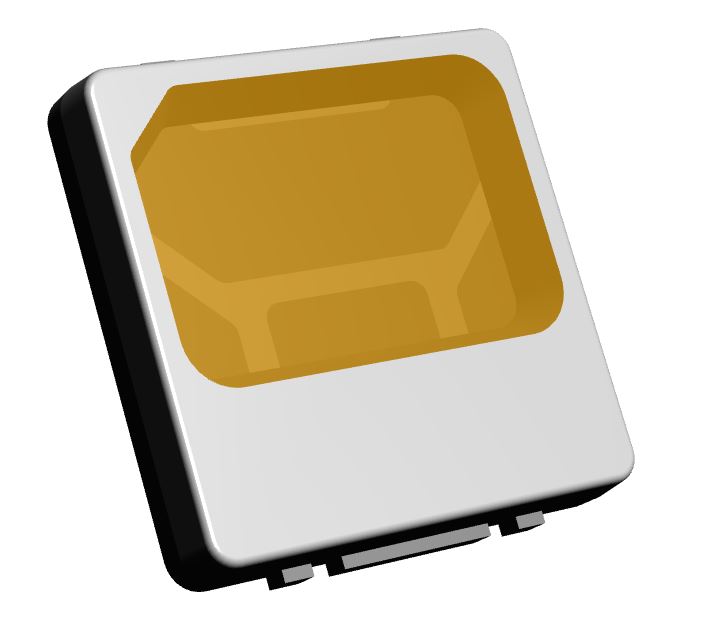

Light It Up – The EzyLED Way

This unique brand of LEDs has a very illuminating design. The integrated circuits for the LEDs are built directly into the LED chip design, seriously cutting down on additional circuitry and removing the need for additional on-board IC and other components. This means inventory management is dramatically reduced, since there is no need for additional resistors, regulatory diodes, or bridge rectifiers. This makes EzyLED an ideal solution thanks to its simplicity and ease of use.

The 3030 series EzyLEDs connect in parallel, and are directly driven by a conventional 12V/24V DC source. This allows for a constant luminosity between the input voltage range of 10.4V – 24V, and the LED maintains around half its intensity when the input voltage drops.

The EzyLED arrays actively modulate power usage by decreasing input current to avoid overheating. This will occur when the LED reaches 120°C, and means the input current, light output, and colour temperature all stay consistent, despite exterior voltage fluctuations or changes.

EzyLEDs are available in blue, red, green, amber, and three different varieties of white – cool, neutral, and warm, and are capable of outputting from 6 to 210 lumens per LED, depending on your choice of colour, power input, and so on.

If you would like any additional information about the EzyLED, or indeed any of American Bright’s products, please do not hesitate to contact us.
